Our ceramic pipe is suitable for resin sand, sodium silicate sand, coated sand, tidal sand, lost foam and other moulding processes. It is widely used in various casting products (high manganese steel, alloy steel, stainless steel, high chromium cast iron, nodular cast iron, gray iron, etc.).
- High density
- High refractory temperature：more than 1650 ℃
- Better corrosion resistance
- High thermal strength and good thermoplasticity
- Make the distribution of liquid metal more meticulous and reasonable
Routine Equal-Diameter Two-Way Straight Pipe TG-ZN
| Type Φ50~70mm | Φd(mm) | ΦD(mm) | ΦL(mm) |
|---|---|---|---|
| TG-ZN20L50 | 20 | 28 | 50 |
| TG-ZN20L100 | 20 | 28 | 100 |
| TG-ZN20L300 | 20 | 28 | 300 |
| TG-ZN40L50 | 40 | 50 | 50 |
| TG-ZN40L100 | 40 | 50 | 100 |
| TG-ZN40L300 | 40 | 50 | 300 |
| TG-ZN50L50 | 50 | 62 | 50 |
| TG-ZN50L100 | 50 | 62 | 100 |
| TG-ZN50L300 | 50 | 62 | 300 |
| TG-ZN60L50 | 60 | 74 | 50 |
| TG-ZN60L100 | 60 | 74 | 100 |
| TG-ZN60L300 | 60 | 74 | 300 |
| TG-ZN70L50 | 70 | 86 | 50 |
| TG-ZN70L100 | 70 | 86 | 100 |
| TG-ZN70L300 | 70 | 86 | 300 |
| Type Φ80~120mm | Φd(mm) | ΦD(mm) | L(mm) |
|---|---|---|---|
| TG-ZN80L50 | 80 | 96 | 50 |
| TG-ZN80L100 | 80 | 96 | 100 |
| TG-ZN80L300 | 80 | 96 | 300 |
| TG-ZN90L50 | 90 | 108 | 50 |
| TG-ZN90L100 | 90 | 108 | 100 |
| TG-ZN90L300 | 90 | 108 | 300 |
| TG-ZN100L50 | 100 | 120 | 50 |
| TG-ZN100L100 | 100 | 120 | 100 |
| TG-ZN100L300 | 100 | 120 | 300 |
| TG-ZN110L50 | 110 | 130 | 50 |
| TG-ZN110L100 | 110 | 130 | 100 |
| TG-ZN110L300 | 110 | 130 | 300 |
| TG-ZN120L50 | 120 | 142 | 50 |
| TG-ZN120L100 | 120 | 142 | 100 |
| TG-ZN120L300 | 120 | 142 | 300 |
Equal-Diameter Two-Way Parent Pipe TG-ZJ
| Type | ΦD1(mm) | ΦD2(mm) | ΦD3(mm) | L2(mm) | L(mm) |
|---|---|---|---|---|---|
| TG-ZJ50L50 | 50 | 70 | 80 | 20 | 50 |
| TG-ZJ50L300 | 50 | 70 | 80 | 20 | 300 |
| TG-ZJ60L50 | 60 | 80 | 100 | 20 | 50 |
| TG-ZJ60L300 | 60 | 80 | 100 | 20 | 300 |
| TG-ZJ70L100 | 70 | 90 | 110 | 20 | 100 |
| TG-ZJ70L300 | 70 | 90 | 110 | 20 | 300 |
| TG-ZJ80L100 | 80 | 100 | 120 | 20 | 100 |
| TG-ZJ80L300 | 80 | 100 | 120 | 20 | 300 |
| TG-ZJ90L100 | 90 | 110 | 130 | 20 | 100 |
| TG-ZJ100L100 | 100 | 120 | 150 | 20 | 100 |
| TG-ZJ100L150 | 100 | 120 | 150 | 20 | 150 |
| TG-ZJ120L80 | 120 | 150 | 170 | 20 | 80 |
| TG-ZJ120L300 | 120 | 150 | 170 | 20 | 300 |
| TG-ZJ140L200 | 140 | 100 | 120 | 20 | 200 |
| TG-ZJ140L300 | 140 | 100 | 120 | 20 | 300 |
Variable-Diameter Two-Way Pipe TG-ZB
| Type | Φd1(mm) | Φd2(mm) | Φd3(mm) | ΦD2(mm) | L(mm) |
|---|---|---|---|---|---|
| TG-ZB40(60)L100 | 40 | 50 | 60 | 74 | 100 |
| TG-ZB40(80)L100 | 40 | 50 | 80 | 96 | 100 |
| TG-ZB50(70)L100 | 50 | 62 | 70 | 86 | 100 |
| TG-ZB50(80)L100 | 50 | 62 | 80 | 96 | 100 |
| TG-ZB60(80)L110 | 60 | 74 | 80 | 96 | 110 |
| TG-ZB60(90)L110 | 60 | 74 | 90 | 108 | 110 |
| TG-ZB60(100)L110 | 60 | 74 | 100 | 120 | 110 |
| TG-ZB70(90)L120 | 70 | 86 | 90 | 108 | 120 |
| TG-ZB70(100)L120 | 70 | 86 | 100 | 120 | 120 |
| TG-ZB70(120)L120 | 70 | 86 | 120 | 142 | 120 |
| TG-ZB80(100)L140 | 80 | 96 | 100 | 120 | 140 |
| TG-ZB80(120)L140 | 80 | 96 | 120 | 142 | 140 |
| TG-ZB90(120)L140 | 90 | 108 | 120 | 142 | 140 |
| TG-ZB100(120)L140 | 100 | 120 | 120 | 142 | 140 |
Right-Angle Elbow TG-LN
| Type | Φd(mm) | ΦD(mm) | L(mm) |
|---|---|---|---|
| TG-LN35L70 | 35 | 45 | 70 |
| TG-LN40L80 | 40 | 50 | 80 |
| TG-LN50L90 | 50 | 62 | 90 |
| TG-LN60L100 | 60 | 74 | 100 |
| TG-LN70L120 | 70 | 86 | 120 |
| TG-LN80L130 | 80 | 96 | 130 |
| TG-LN90L140 | 90 | 108 | 140 |
| TG-LN100L160 | 100 | 120 | 160 |
| TG-LN120L180 | 120 | 142 | 180 |
Curved Pipe TG-WN
| Type | Φd(mm) | ΦD(mm) | L(mm) |
|---|---|---|---|
| TG-WN20L55 | 20 | 30 | 55 |
| TG-WN30L80 | 30 | 40 | 80 |
| TG-WN40L100 | 40 | 50 | 100 |
| TG-WN40L80 | 40 | 50 | 80 |
| TG-WN50L125 | 50 | 63 | 125 |
| TG-WN50L80 | 50 | 63 | 80 |
| TG-WN60L135 | 60 | 75 | 135 |
| TG-WN70L150 | 70 | 84 | 150 |
| TG-WN70L130 | 70 | 84 | 130 |
| TG-WN80L170 | 80 | 96 | 170 |
| TG-WN90L160 | 90 | 107 | 160 |
| TG-WN100L200 | 100 | 120 | 200 |
| TG-WN120L210 | 120 | 144 | 210 |
| TG-WN140L280 | 140 | 160 | 280 |
Variable-Diameter T-Piece Pipe TG-TB
| Type | Φd1(mm) | ΦD1(mm) | Φd2(mm) | ΦD2(mm) | H(mm) | L(mm) |
|---|---|---|---|---|---|---|
| TG-TB20(40) | 40 | 52 | 20 | 32 | 170 | 120 |
| TG-TB30(40) | 40 | 52 | 30 | 42 | 170 | 120 |
| TG-TB60(50) | 50 | 63 | 60 | 72 | 135 | 90 |
| TG-TB70(50) | 50 | 63 | 70 | 83 | 160 | 100 |
| TG-TB40(60) | 60 | 74 | 40 | 54 | 150 | 110 |
| TG-TB40(50) | 50 | 62 | 40 | 50 | 85 | 130 |
| TG-TB40(60) | 60 | 72 | 40 | 50 | 90 | 150 |
| TG-TB50(70) | 70 | 84 | 50 | 62 | 95 | 160 |
| TG-TB60(80) | 80 | 96 | 60 | 74 | 115 | 180 |
| TG-TB70(100) | 100 | 120 | 70 | 86 | 120 | 190 |
| TG-TB140(120) | 120 | 144 | 140 | 164 | 210 | 240 |
| TG-TB60(40) | 40 | 50 | 60 | 74 | 110 | 150 |
| TG-TB70(50) | 50 | 62 | 70 | 86 | 120 | 160 |
| TG-TB80(60) | 60 | 74 | 80 | 96 | 140 | 180 |
| TG-TB100(80) | 80 | 96 | 100 | 120 | 170 | 220 |
| TG-TB140(100) | 100 | 120 | 140 | 164 | 210 | 230 |
Equal-Diameter T-Piece Pipe TG-TN
| Type | Φd(mm) | ΦD(mm) | H(mm) | L(mm) |
|---|---|---|---|---|
| TG-TN25 | 25 | 36 | 60 | 90 |
| TG-TN30 | 30 | 40 | 70 | 100 |
| TG-TN35 | 35 | 45 | 70 | 140 |
| TG-TN40 | 40 | 50 | 80 | 150 |
| TG-TN50 | 50 | 62 | 90 | 160 |
| TG-TN60 | 60 | 74 | 100 | 170 |
| TG-TN70 | 70 | 84 | 120 | 180 |
| TG-TN80 | 80 | 96 | 130 | 190 |
| TG-TN90 | 90 | 108 | 140 | 200 |
| TG-TN100 | 100 | 120 | 150 | 220 |
| TG-TN120 | 120 | 142 | 180 | 230 |
| TG-TN140 | 140 | 164 | 200 | 230 |
Equal-Diameter Joint TG-JT
| Type | Φd2(mm) | Φd1(mm) | ΦD(mm) | L(mm) |
|---|---|---|---|---|
| TG-JT40 | 40 | 52 | 65 | 35 |
| TG-JT50 | 50 | 64 | 76 | 35 |
| TG-JT60 | 60 | 76 | 90 | 40 |
| TG-JT70 | 70 | 90 | 105 | 40 |
| TG-JT80 | 80 | 98 | 115 | 40 |
| TG-JT90 | 90 | 110 | 128 | 40 |
| TG-JT100 | 100 | 123 | 135 | 40 |
| TG-JT110 | 110 | 145 | 155 | 45 |
| TG-JT140 | 140 | 167 | 191 | 45 |
Flat Gate Duckbill Pipe TG-BJ
| Type | ΦD2(mm) | ΦD1(mm) | ΦL3(mm) | ΦL2(mm) | ΦL1(mm) | H1(mm) | H2(mm) | H3(mm) |
|---|---|---|---|---|---|---|---|---|
| TG-BJ40 | 40 | 52 | 20 | 62 | 72 | 65 | 15 | 20 |
| TG-BJ50 | 50 | 62 | 25 | 72 | 85 | 100 | 25 | 20 |
| TG-BJ60 | 60 | 74 | 30 | 90 | 105 | 90 | 25 | 25 |
| TG-BJ70 | 70 | 86 | 35 | 100 | 125 | 100 | 30 | 25 |
| TG-BJ80 | 80 | 74 | 24 | 70 | 100 | 110 | 30 | 25 |
| TG-BJ90 | 90 | 108 | 26 | 80 | 115 | 110 | 30 | 30 |
| TG-BJ100 | 100 | 120 | 28 | 100 | 135 | 110 | 30 | 30 |
Variable-Diameter Four-Way Pipe TG-4B
| Type | Φd1(mm) | ΦD1(mm) | Φd2(mm) | ΦD2(mm) | L(mm) |
|---|---|---|---|---|---|
| TG-4B40(60)L120 | 40 | 54 | 60 | 76 | 120 |
| TG-4B50(70)L125 | 50 | 76 | 70 | 86 | 125 |
| TG-4B60(80)L130 | 60 | 76 | 80 | 98 | 130 |
| TG-4B80(100)L140 | 80 | 98 | 100 | 120 | 140 |
| TG-4B100(120)L150 | 100 | 120 | 120 | 144 | 150 |
Equal-Diameter Four-Way Pipe TG-4N
| Type | Φd(mm) | ΦD(mm) | L(mm) |
|---|---|---|---|
| TG-4N50L120 | 50 | 64 | 120 |
| TG-4N60L130 | 60 | 76 | 130 |
| TG-4N70L140 | 70 | 86 | 140 |
| TG-4N80L150 | 80 | 98 | 150 |
| TG-4N90L170 | 90 | 110 | 170 |
| TG-4N100L180 | 100 | 120 | 180 |
| TG-4N120L200 | 120 | 144 | 200 |
| TG-4N140L220 | 140 | 168 | 220 |
| TG-4N160L250 | 160 | 190 | 250 |
Flat Gate Elbow TG-BW
| Type | Φd1(mm) | ΦD1(mm) | W1(mm) | W2(mm) | H1(mm) | H2(mm) | H3(mm) | L(mm) |
|---|---|---|---|---|---|---|---|---|
| TG-BW40H120 | 40 | 50 | 90 | 100 | 20 | 30 | 70 | 120 |
| TG-BW50H115 | 50 | 62 | 80 | 92 | 25 | 37 | 85 | 115 |
| TG-BW60H140 | 60 | 74 | 115 | 129 | 30 | 44 | 100 | 140 |
| TG-BW60H220 | 60 | 74 | 115 | 129 | 30 | 44 | 100 | 220 |
| TG-BW60H180 | 60 | 74 | 70 | 84 | 25 | 39 | 90 | 180 |
| TG-BW70H150 | 70 | 86 | 120 | 136 | 35 | 51 | 110 | 150 |
| TG-BW80H200 | 80 | 98 | 80 | 98 | 25 | 43 | 90 | 200 |
Flat Gate Cup TG-JBP
| Type | d(mm) | D(mm) | (mm) | H(mm) |
|---|---|---|---|---|
| TG-JBP50H182 | 50 | 176 | 21 | 182 |
| TG-JBP50H120 | 50 | 170 | 18 | 120 |
| TG-JBP60H180 | 60 | 200 | 19 | 180 |
| TG-JBP60H200 | 60 | 200 | 20 | 200 |
| TG-JBP70H220 | 70 | 200 | 18 | 220 |
| TG-JBP80H215 | 80 | 235 | 17.5 | 215 |
| TG-JBP80H250 | 80 | 280 | 25 | 250 |
| TG-JBP100H300 | 100 | 280 | 20 | 300 |
| TG-JBP100H290 | 100 | 300 | 20 | 290 |
| TG-JBP120H300 | 120 | 300 | 25 | 300 |
| TG-JBP120H340 | 120 | 340 | 30 | 340 |
| TG-JBP140H300 | 140 | 300 | 25 | 300 |

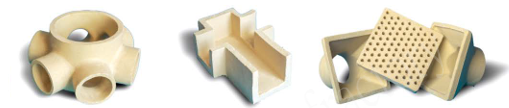

| Type | Product |
|---|---|
| TG-5T | Equal-Diameter Five-Way Pipe |
| TG-5B | Variable-Diameter Five-Way Pipe |
| TG-6T | Equal-Diameter Six-Way Pipe |
| TG-6B | Variable-Diameter Six-Way Pipe |
| TG-HZ | Transverse and Direct Runner Bricks |
| TG-JW | Gate Socket |
| TG-GL | Straight Pass Filter |
| TG-WZ | Filter Seat |
| TG-TP | Ceramic Gasket |
| TG-DZ | Slag Retaining Brick |
Concave Gate Cup TG-JBA
| Type | d(mm) | D(mm) | (mm) | H(mm) |
|---|---|---|---|---|
| TG-JBA35H130 | 35 | 130 | 13 | 130 |
| TG-JBA40H130 | 40 | 130 | 13 | 130 |
| TG-JBA50H130 | 50 | 135 | 13 | 130 |
| TG-JBA60H150 | 60 | 170 | 12.5 | 150 |
| TG-JBA60H210 | 60 | 220 | 14 | 210 |
| TG-JBA70H185 | 70 | 225 | 12.5 | 185 |
| TG-JBA80H205 | 80 | 235 | 15 | 205 |
| TG-JBA100H300 | 100 | 310 | 20 | 300 |

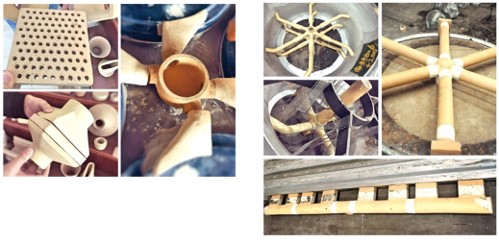

Customization of Non-standard Products
